03151Locating pins expanding |
go back | |
Item description/product images |

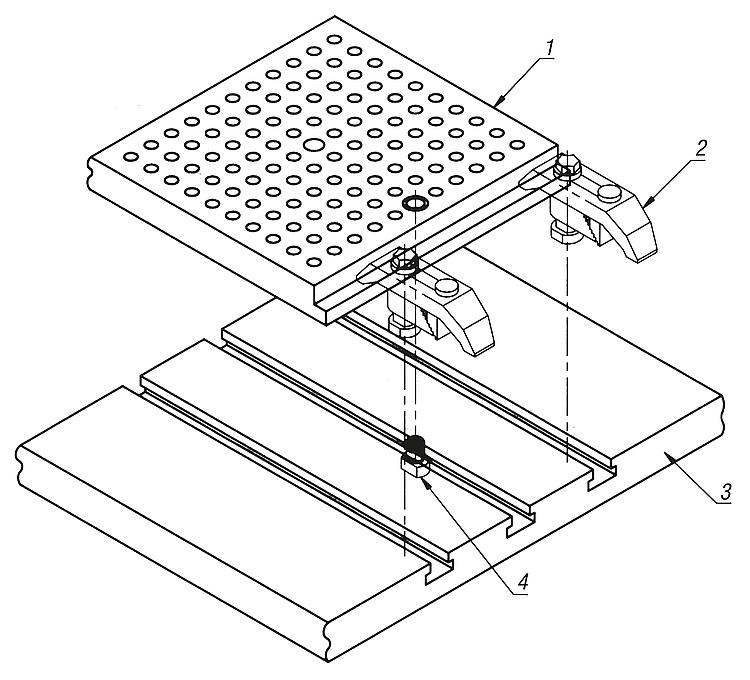

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised. Locating diameter and guide faces ground.Note:These expanding locating pins enable e.g. tooling plates to be positioned in the T-slots of machine tables (see illustration). The plates to be positioned must have two holes matching the expanding pin diameter. The expansion screw has a broached through hexagonal hole allowing the pin to be tightened or loosened from two sides.Drawing reference: 1) tooling plate 2) clamp straps 3) machine table 4) expanding locating pin  DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|

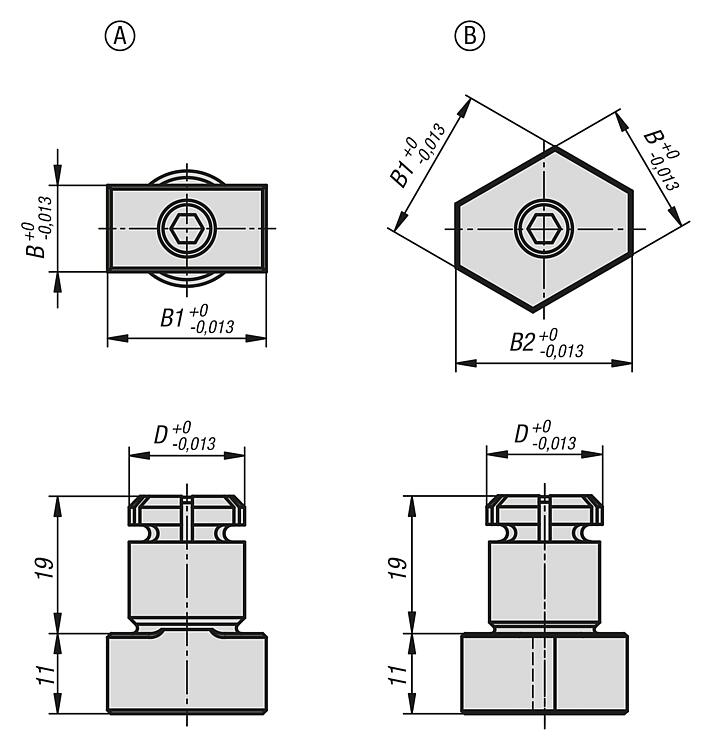

Drawings |
 |
Item selection/filter |
| Order No. | Form | D | B | B1 | B2 | Recommended Ø | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 03151-1610 | A | 16 | 10 | 20 | - | 16,01 ±0,01 |  | 30.56 € | ||
| 03151-1612 | A | 16 | 12 | 22 | - | 16,01 ±0,01 | | 27.85 € | ||
| 03151-1614 | B | 16 | 14 | 16 | 18 | 16,01 ±0,01 | | 27.85 € | ||
| 03151-2024 | B | 20 | 24 | 28 | 32 | 20,01 ±0,01 | | 38.77 € |
