95180Ball transfer units mini |
go back | |

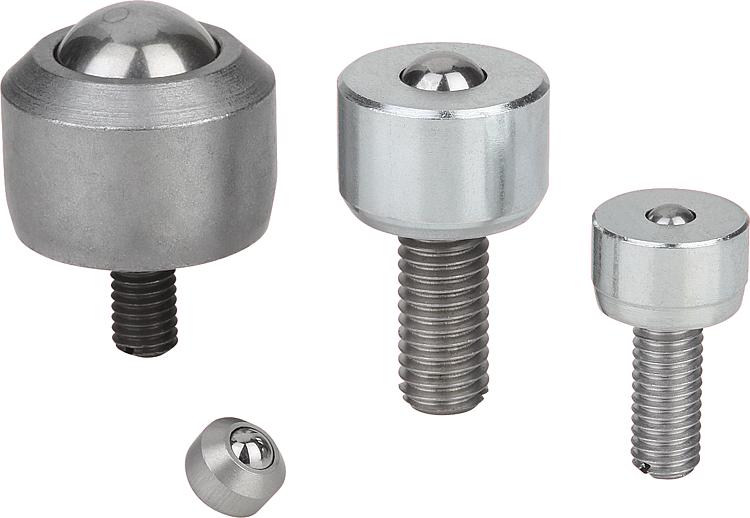

Item description/product images |
 |

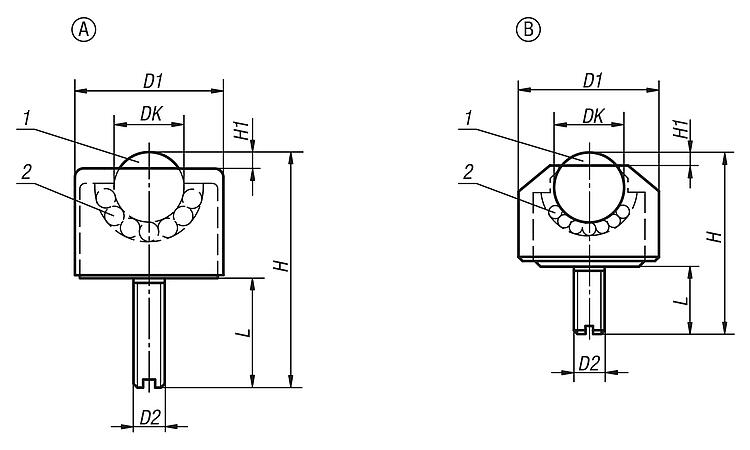

DescriptionMaterial:Steel version: Load ball steel. Bearing balls steel. Housing electro zinc-plated steel. Cover electro zinc-plated steel. Stainless steel version: Load ball stainless steel. Bearing balls stainless steel. Housing stainless steel. Cover aluminium.Note:The ball transfer units comprise a housing with integrated bearing shell, a cover, a load ball and several supporting balls. For use in measuring instruments, material conveyance in clean rooms and miniature mechanisms.Drawing reference: 1) load ball 2) bearing balls DownloadHere is all the information as a PDF datasheet: Are you looking for CAD data? These can be found directly in the product table.
|
Drawings |
 |
Item selection/filter |
| Order No. | Form | Main material | DK | D1 | D2 | H | H1 | L | Load rating C (N) | CAD | Acc. | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95180-1105 | A | steel | 4,8 | 13 | M6 | 24 | 1 | 15 | 100 |  | 40.58 € | ||
| 95180-1106 | A | steel | 6,4 | 17 | M6 | 26 | 2 | 15 | 200 | | 42.73 € | ||
| 95180-1108 | A | steel | 7,9 | 18 | M8 | 32 | 2 | 18 | 300 | | 44.52 € | ||
| 95180-1110 | A | steel | 9,6 | 23 | M8 | 40 | 2 | 20 | 400 | | 45.94 € | ||
| 95180-1113 | A | steel | 12,7 | 28 | M8 | 48 | 3,5 | 23 | 500 | | 48.47 € | ||
| 95180-1216 | B | steel | 15,8 | 24 | M6 | 32,5 | 4 | 12 | 700 | | 57.45 € | ||
| 95180-2205 | B | stainless steel | 4,8 | 8 | M2 | 8,5 | 1 | 2,5 | 50 | | 53.14 € | ||
| 95180-2206 | B | stainless steel | 6,4 | 13 | M3 | 16,5 | 2 | 6 | 100 | | 54.92 € | ||
| 95180-2208 | B | stainless steel | 7,9 | 15 | M4 | 20,5 | 2 | 8 | 150 | | 58.52 € |
